474.12.180

Box and Appliances Clamp with two pivoting arms

Residual Capacity Calculation

Clamp with both pivoting rubber covered arms, suggested to customers who need to move appliances and cardboards settled on double depth, in multiple rows and layers (they can handle up to 12 domestic appliances or cardboards in one grab). The clamping force, which can be set through hydraulic valve, allows a safe movement of the load. A pressure relief valve, a non-return valve and a regenerative valve are supplied as standard on each model. Min. and Max. openings can be adapted to different needs, as arms dimension and length. Side shifting valve and semi-integral sideshift available on request.

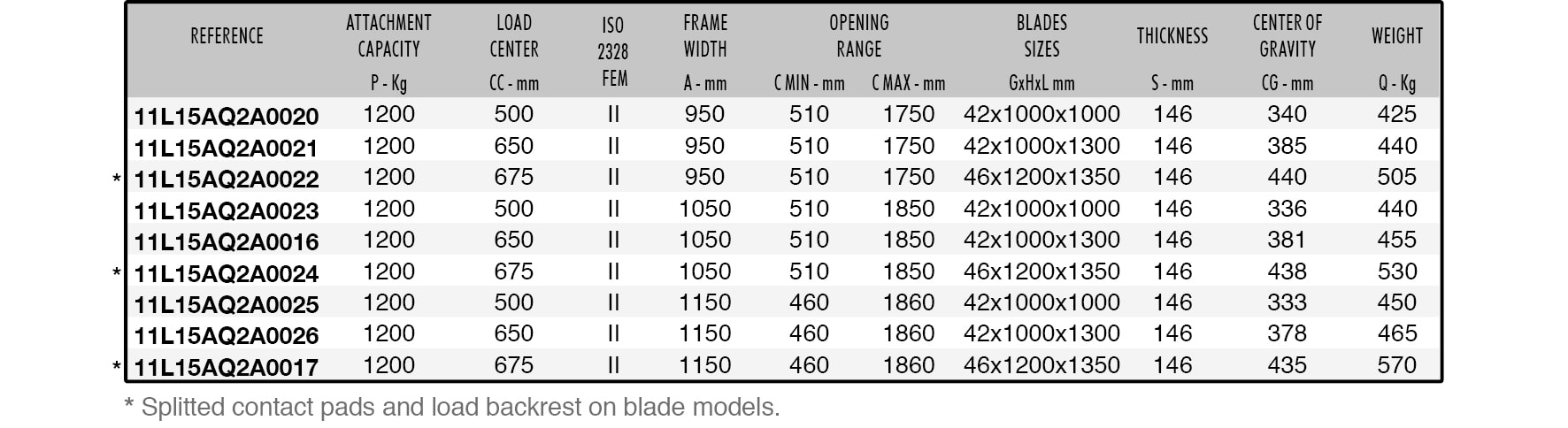

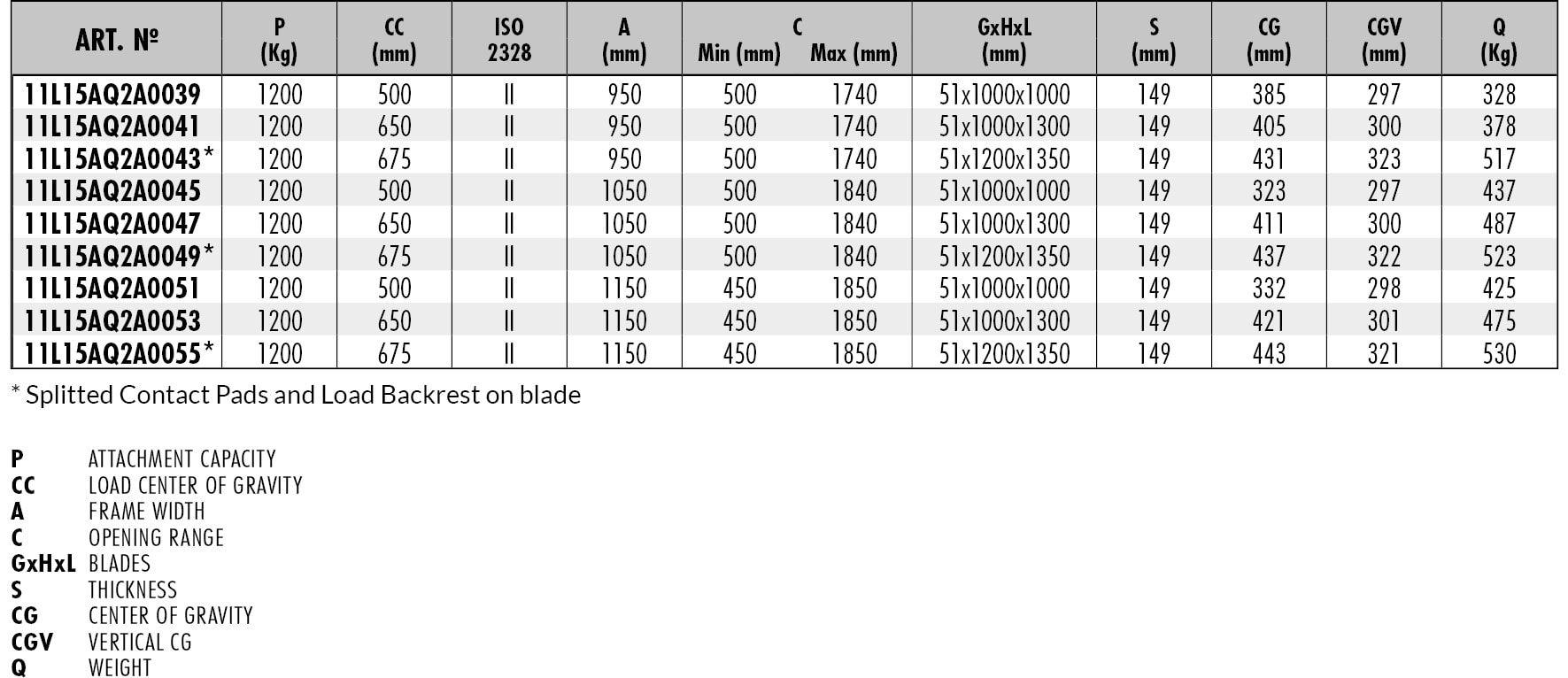

Data Sheet


HELP IN CHOOSING THE RIGHT ATTACHMENT
Do you know which attachment best suits your needs?
